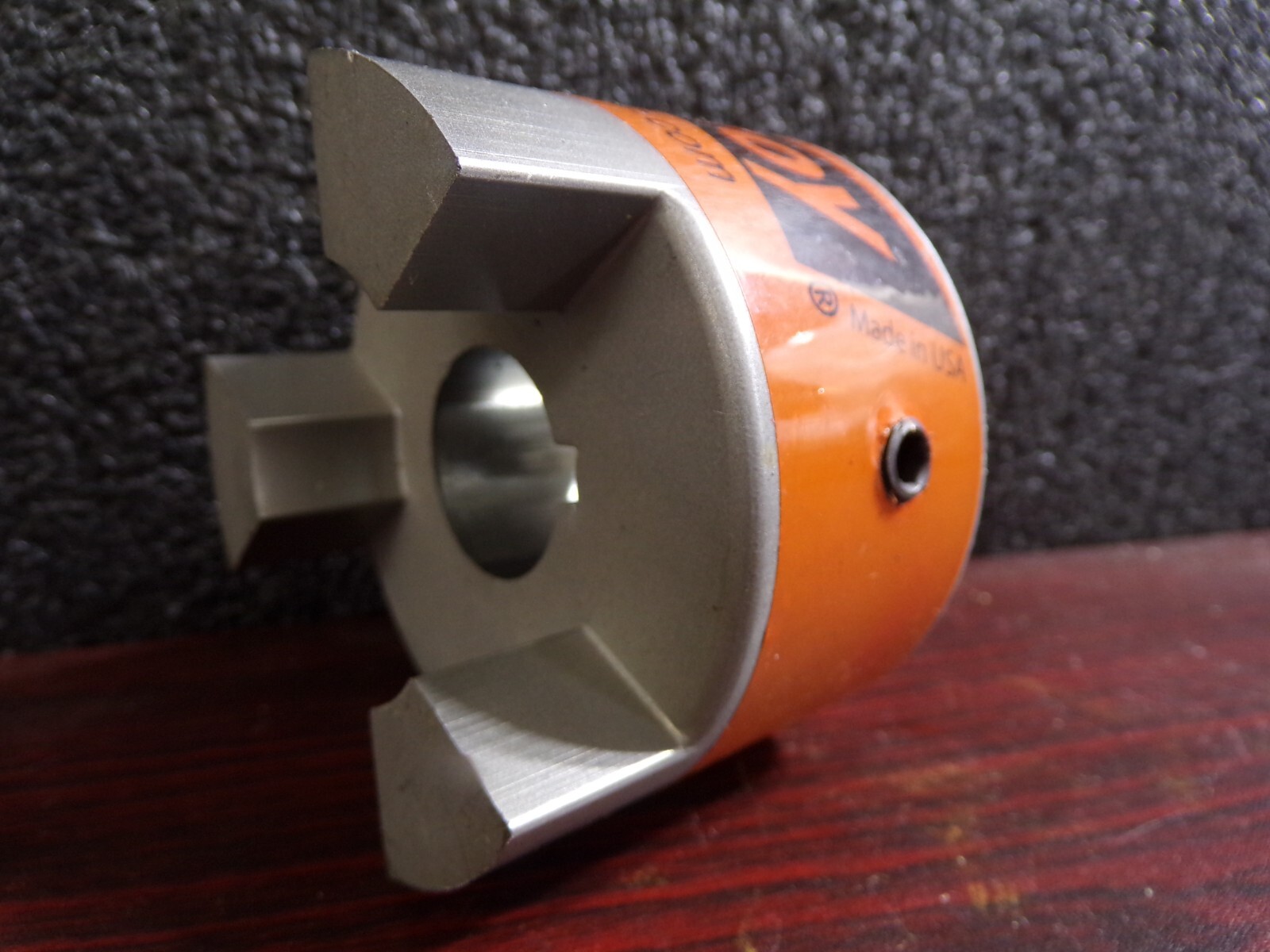

Tb Woods L110118 L-Jaw Coupling Hub,L110,Sint Iron,1-1/8″ (G)
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Modification Description | N/A |
| Power Source | N/A |
| Size | L110 |
| Color | N/A |
| Material | Sintered iron |
| Battery Size | N/A |
| Weight | 2.9300 |
| Depth | 3.500 |
| Brand | TB WOODS |
| Number Of Batteries | N/A |
| Battery Capacity | N/A |
| Battery Life | N/A |
| Length | 9.000 |
| Voltage | N/A |
| Motor Type | N/A |
| Cable Length | N/A |
| Width | 3.500 |
TB WOOD'S Jaw Coupling Hub: L110 Coupling Size, 3 21/64 in Outside Dia, Inch, For Keyed Shaft TypeProduct Details BrandTB WOOD'SBore Diameter1-1/8 inBore Tolerance+0.0005/+0.0015 inBore TypeRound Bore with KeywayCompatible Center Element Manufacturer Part NumberL110H; L110N; L110UCoupling Overall Length4-15/64 inCoupling SizeL110Horsepower @ 100 RPM1.3 hp (Buna-N Spider); 2.0 hp (Urethane Spider); 3.6 hp (Hytrel Spider)Hub Diameter3-21/64 inHub MaterialCarbon SteelHub Projection1-11/16 inIncluded ScrewsSet ScrewJaw ProfileStraightKeyway Depth1/8 inKeyway Width1/4 inLength Through Bore1.7 inMaximum Bore Diameter1-5/8 inMaximum Operating Temperature250 °FMaximum Speed5,000 RPMRated Torque for Spider Types1188 in-lb (Urethane); 2268 in-lb (Hytrel); 792 in-lb (Buna-N)Minimum Operating Temperature-31 °FNumber of Locking Screws1Outside Diameter3-21/64 inResistance PropertiesChemical Resistant; Oil ResistantScrew Thread Size3/8"-16 UNC 2BShaft Locking TypeSet ScrewStandardsISO CertifiedSystem of MeasurementInchFor Shaft TypeKeyedHub MaterialCarbon SteelKeyway Size1/4 in x 1/8 inManufacturer Part NumberL110118Sub-brandL-JawCountry of OriginUSA (subject to change)Product DescriptionGeneral purpose straight jaw coupling hubs attach to motor and equipment shafts using a set screw or keyway. Two couplings of the same size are locked together with a compatible straight jaw spider. These hubs are interchangeable with other brands according to the coupling size identifier.
