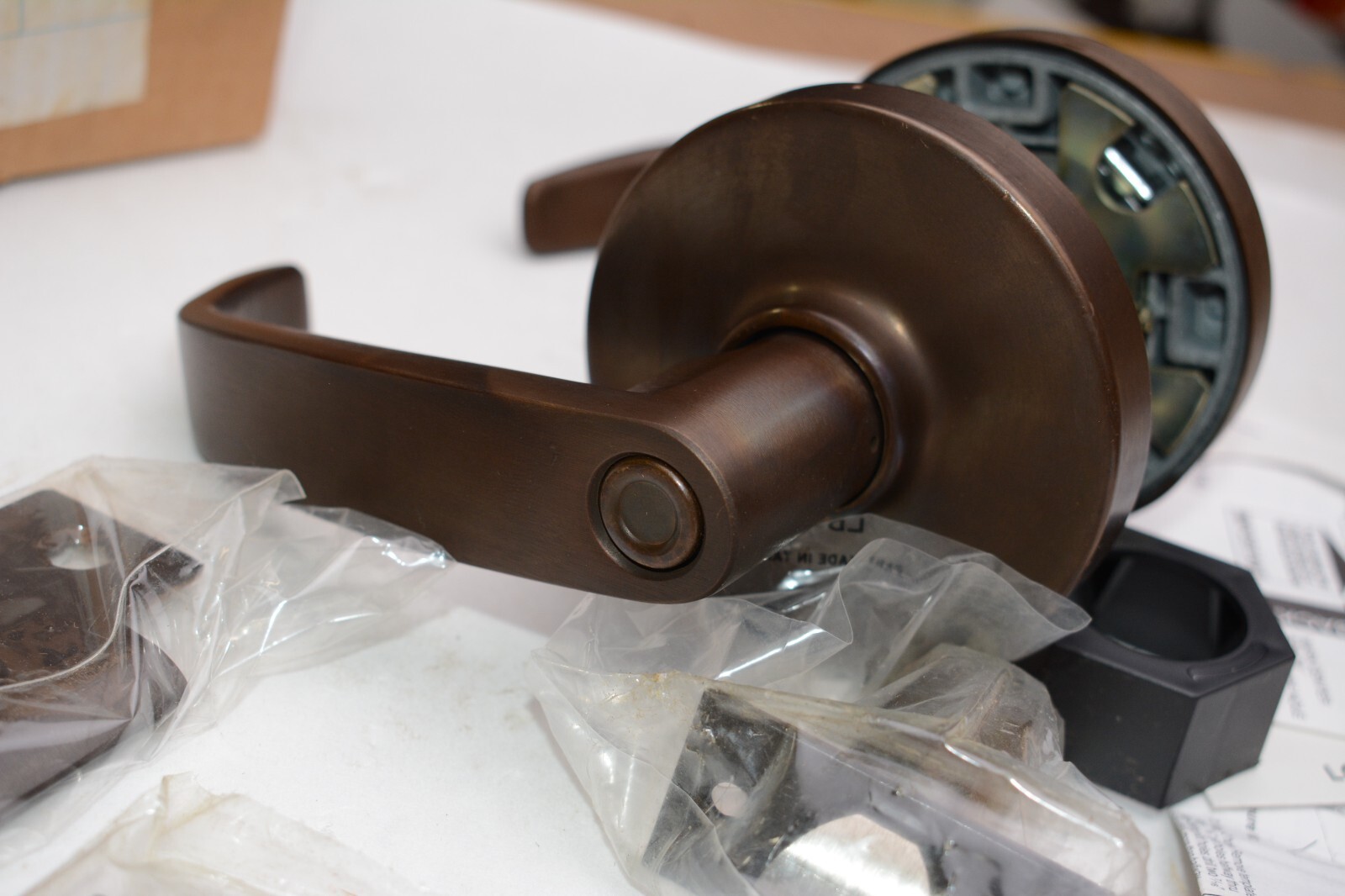

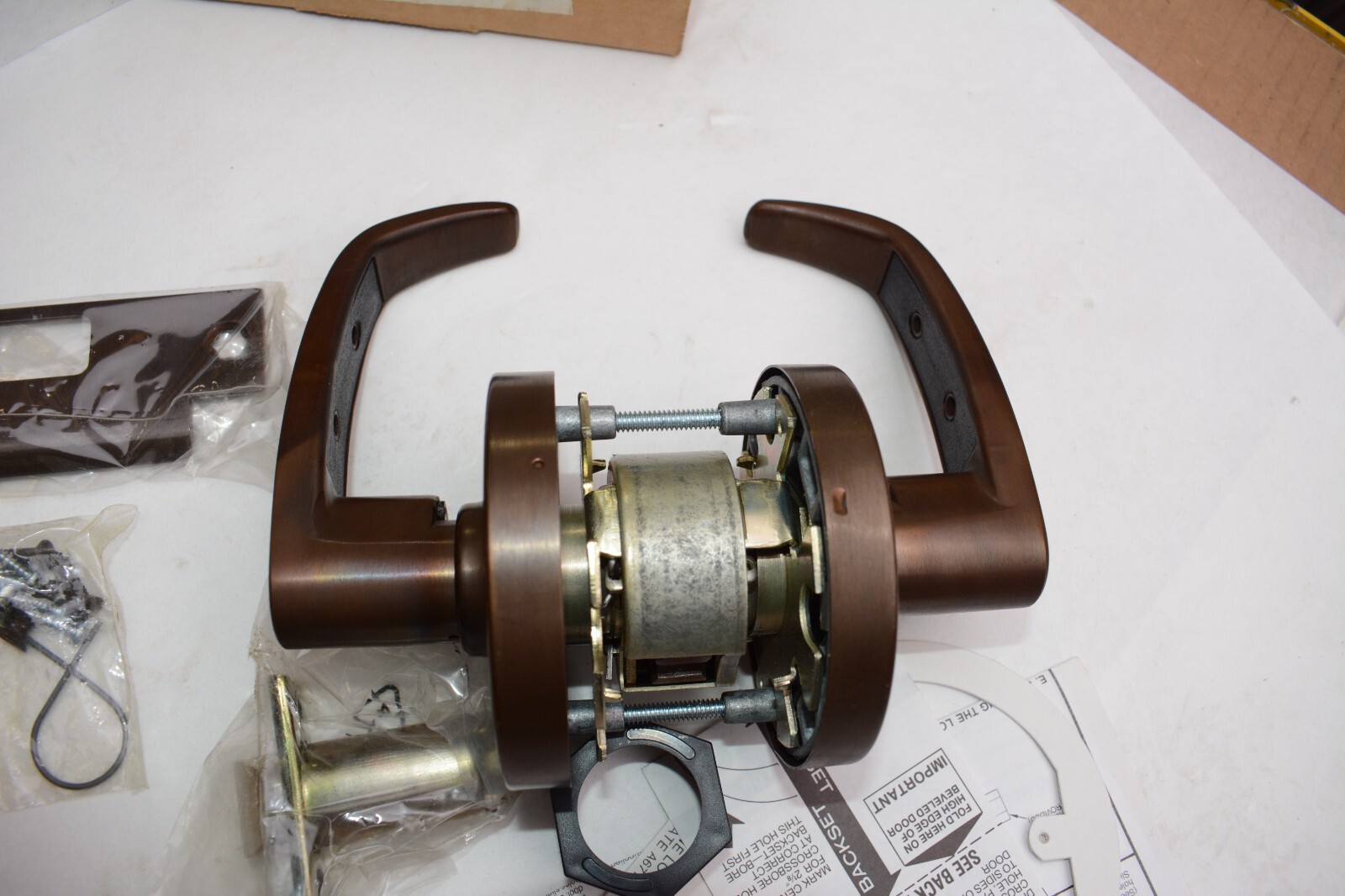

Sargent 28-10U65 LL 10B 10 Line U65 Privacy Lever Lockset, Oil Rubbed Dark Bronz
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Unit Type | Unit |
| COLOR | Oil Rubbed Dark Bronze |
| Country/Region Of Manufacture | United States |
Sargent 28-10U65 LL 10B 10 Line U65 Privacy Lever Lockset, Oil Rubbed Dark Bronze FinishOil Rubbed Dark BronzeFunctionU65-PrivacyDesignL Lever and L RoseBackset2-3/4 InchStrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square CornerFire Rated3 Hours {A}OriginUSABAA QualifiedYesPackage Height4.25"Package Length8.25"Package Volume249.8203125Package Width7.125"ANSI FunctionF76Bolt Protection1/2"Case Height9"Case Volume2801.25Case Width15"Dust BoxNoneLatch Backset Dim2-3/4"Latch Number10-2022Latch TypePlain/UnguardedLever/Knob DesignL - LeverLock Face Size2-1/4" x 1-1/8"Package Qty1Rose/Escutcheon DesignL - RoseScrewsCombinationSpecial MarksFire rated 3 Hours {A}Strike Height4-7/8"Strike Number808 ANSI StrikeStrike TypeANSI Curved LipStrike Width1-1/4"Base MaterialBronzeGradeANSI/BHMA Grade 1Thickness1-3/4" - 2"ApplicationHeavy Duty Commercial and Institutional Interior and Exterior Doors; Offices; Schools/Universities; Hospitals; Manufacturing FacilitiesHandNot HandedColorDark Oxidized Satin Bronze Oil RubbedColor Code613/US10BCase Length20.75"Finish DescriptionOil Rubbed Dark BronzeLever StyleL-LeverRose/Escutcheon TrimL-RoseProduct TypeCylindrical LockProjection2.5000Lever Length5.0000Door Thickness1 3/4" - 2"ADA ApprovedFalseWarranty7 Year LimitedHandle TypeLeverRose Diameter3-1/2 InchLatch Throw1/2 InchADA CompliantYESFinish FamilyDark BronzeStandardsANSI/BHMA A156.2 (2017) Series 4000 Grade 1; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door AssembliesFunction DescriptionOutside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.Front Size2-1/4" x 1-1/8"Function FamilyPrivacy/Bedroom/BathroomStrike Lip1-1/4 InchProduct Projection2-1/2 InchTrim MaterialSolid Cast (Lever); Heavy Wrought (Rose)Minimum Stile Width4-1/2 InchFeaturesAdapts to Fit Multiple Thrubolt Positions; Pre-Assembled Components Make Installation Quick and Easy; Latch by Either Lever Unless Outside Lever is Locked by Push Button in Inside Lever; Turning Inside Lever or Closing Door Releases ButtonManufacturer ParentAssa AbloyLever Length-Inches5 InchLatch CornerSquareKnob/Lever Size5 InchLatch Bolt MaterialStainless SteelLever Style FamilyStraight Return LeverSub-SeriesCL_Cylindrical_Locks_sargent_146Strike Size4-7/8" x 1-1/4" Enduring more than 1.5 times the industry standard of abusive force, the 10 Line lock is a heavy-duty key-in-lever handle lockset that also exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles. And in addition to preventing unwanted entry, the 10 Line is designed to conform to national and state fire and handicapped requirements. Convenience:Installs in 1 minute or lessQuickly adapts to fit multiple through-bolt positionsUser friendly packagingUser friendly instruction sheetsConvenient installation diagram on boxDesign:Solid feel and precise lever actionSlim rose design availableDecorative LeversCoastal Series designsGulfport and YarmouthLevers are solid one piece cast construction,except "J" leverFlexibility:Fits a variety of door preparations with adaptable through-bolt positioningAccommodates retrofit applications withoptional 2-3/8", 3-3/4" and 5" backset latches6 ADA lever styles to complement a wide array of design applicationsLevers (B, L, J & P) are non-handed for efficient warehousing and for ease of installation11 Architectural grade finishes21 FunctionsSARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applicationsSecurity:Classroom security and multiple locking functions availableSecurity key systems available(Signature, Keso, BR-XC, XC)Applications:Designed to conform to national & state fire and handicapped requirementsGrade 1 LockHeavy duty commercial and institutional interior and exterior doorsOfficesSchools/UniversitiesHospitalsManufacturing facilities
